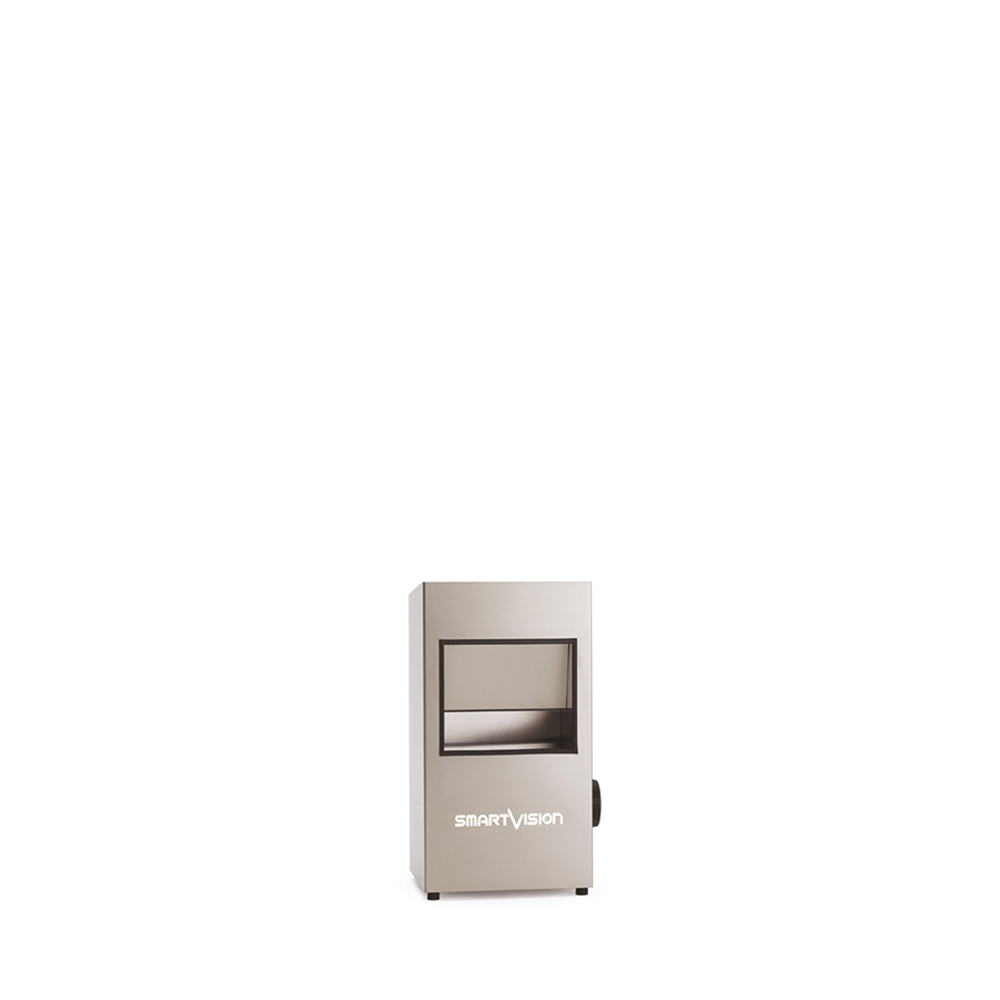

Smart_Projector 7 is an Automatic Digital Profile Projector that combines the precision, objectivity, repeatability and user-friendliness in one device, guaranteed by SmartVision’s Technology.
Smart_Projector 7
Digital Measuring and Ispection Machine 2D
“Smart_Projector 7 is ideal for those application that require toughest precision tolerances”
With a very Small Field of View (FoV), this model of Smart_Projector is an ideal instrument for measuring and visual inspection of components and objects in those sectors that require strict precision tolerances, such as microelettronical, micromechanical and watchmaking.
This system ensures measurement stability of the image center when focusing. A data report of all checking activities performed is automatically generated and is available for export in different formats compatible with excel files (csv, tsv, txt) or ready for printing (pdf) and also configurable with the image view.
Smart_Projector 7 is a fast, compact, rugged, stable, easy-to-use and easy-to-program device, expressly designed for the laboratories but also industrial environments and heavy duty cycles use.
- Very Small FoV, only 7×4.5 (mm), with Focus Adjusting
- Eliminates subjectivity and errors of operator-based gauging
- Increases number of quotas and quality check rate, up to 16000 checking features in a few seconds
- Performs a full automatic data report, available to processing by SPC software (Min, Max, Range, Average, Std Dev, 6 Sigma)
- Compact, Rugged and Fanless industrial case
- Plug-and-play, ready-to-use
- Suitable for unskilled operators use
- Clever investment with a fast Return on Investment
- Reduces time and costs of controls
- Ideal for those application that require toughest precision tolerances
| Measuring Chamber (mm) | 218×125 H.55 |
| Magnification | No |
| Field of View (FoV) (mm) | 7×4.5 |
| FoV Diagonal (mm) | 8 |
| FoV Area (mm2) | 31 |
| Type of FoV | Rectangular |
| Repeatability accuracy | ±0.07 μm |
| Measurement accuracy | ±0.5 μm |
| Layout usage | Vertical |
| Diascopic Light | Collimated |
| Episcopic Light | No |
| Light receiving lens | Telecentric lens |
| Communication Interface | USB 2 |
| Dimensions (mm) | 324×330 H.490 |
| Weight (kg) | 18 |
| Case | Rugged stainless steel |
| Smart_Projector | Ruby | 7 | 29 | 55 | Quattro Pro | Double | 108 | 168 | 224 |
| Image preview |  |
 |
 |
 |
 |
 |
 |
 |
 |
| Layout usage | Vertical | Vertical | Vertical | Vertical Horizontal |
Vertical Horizontal |
Vertical Horizontal |
Vertical Horizontal |
Vertical | Vertical |
| Magnification | No | No | No | No | 4 steps | 2 steps | No | No | No |
| Field of View (FoV) (mm) | 2.2×1.7 | 7×4.5 | 29×19 | 55×37 | ø 12 | 24 | 48 | 90 | 60×45 | 108×73 | 108×73 | 168×113 | 224×150 |
| FoV Diagonal (mm) | 2.78 | 8 | 30 | 60 | – | 75 | 125 | 125 | 195 | 235 |
| FoV Area (mm2) | 3.74 | 31 | 530 | 2000 | 112 / 452 / 1800 / 6360 | 2700 | 7800 | 7800 | 18500 | 32550 |
| Diascopic Light | Collimated | Collimated | Collimated | Collimated | Collimated | Collimated | Collimated | Directional | Directional |
| Episcopic Light | Yes | No | No | Yes | Yes | Yes | Yes | Yes | No |
- Automatic feature recognition
- Software programmable light
- Quick Annotate and markup
- CAD import / export (dxf file)
- Automatic data report export (xlsx, csv, tsv, txt)
- Print report (pdf)
- Multi language interface
Barcode Scanner CCD
[cq_vc_hotspot image=”11304″ isdisplayall=”on” icontype=”icon” fonticon=”” position=”58%|44%,66%|44%,75%|44%,85%|44%” iconbackground=”#b2b2b2″ circlecolor=”#ffffff” arrowposition=”left,left,left,left” tooltipstyle=”light” maxwidth=”350″ marginoffset=”-6px 0 0 -6px”][hotspotitem]
Resistant stainless steel industrial case
Compact static equipment
[/hotspotitem]
[hotspotitem]
Industrial high resolution camera
High performance Bi-Telecentric Optics
[/hotspotitem]
[hotspotitem]
Protected Three Side Open measuring chamber
Easy object placement
Focus adjusting
[/hotspotitem]
[hotspotitem]
Software programmable
Collimated Diascopic Light
[/hotspotitem][/cq_vc_hotspot]
Resistant stainless steel industrial case
Compact static equipment
[/hotspotitem]
[hotspotitem]
Industrial high resolution camera
High performance Bi-Telecentric Optics
[/hotspotitem]
[hotspotitem]
Protected Three Side Open measuring chamber
Easy object placement
Focus adjusting
[/hotspotitem]
[hotspotitem]
Software programmable
Collimated Diascopic Light
[/hotspotitem][/cq_vc_hotspot]
Smart_Projector 7
[cq_vc_hotspot image=”11149″ isdisplayall=”on” icontype=”icon” fonticon=”” position=”55%|68%,60%|68%,66%|68%,72%|68%,77.5%|68%” iconbackground=”#b2b2b2″ circlecolor=”#ffffff” arrowposition=”right,right,right,right,right” tooltipstyle=”light” maxwidth=”350″ marginoffset=”-6px 0 0 -6px”][hotspotitem]
Powerful All-In-One PC
[/hotspotitem][hotspotitem]
Full HD, 1920×1080 pixels
Intuitive measurement software
[/hotspotitem][hotspotitem]
Record programs
with a finger touch
[/hotspotitem][hotspotitem]
Automatic feature
recognition
[/hotspotitem][hotspotitem]
Up to 16.000 features
per item
[/hotspotitem][/cq_vc_hotspot]
Powerful All-In-One PC
[/hotspotitem][hotspotitem]
Full HD, 1920×1080 pixels
Intuitive measurement software
[/hotspotitem][hotspotitem]
Record programs
with a finger touch
[/hotspotitem][hotspotitem]
Automatic feature
recognition
[/hotspotitem][hotspotitem]
Up to 16.000 features
per item
[/hotspotitem][/cq_vc_hotspot]
Powerful All-in-One PC
Reach Excellence in Quality Control with SmartVision’s Technology!
