Smart_Projector_Ruby

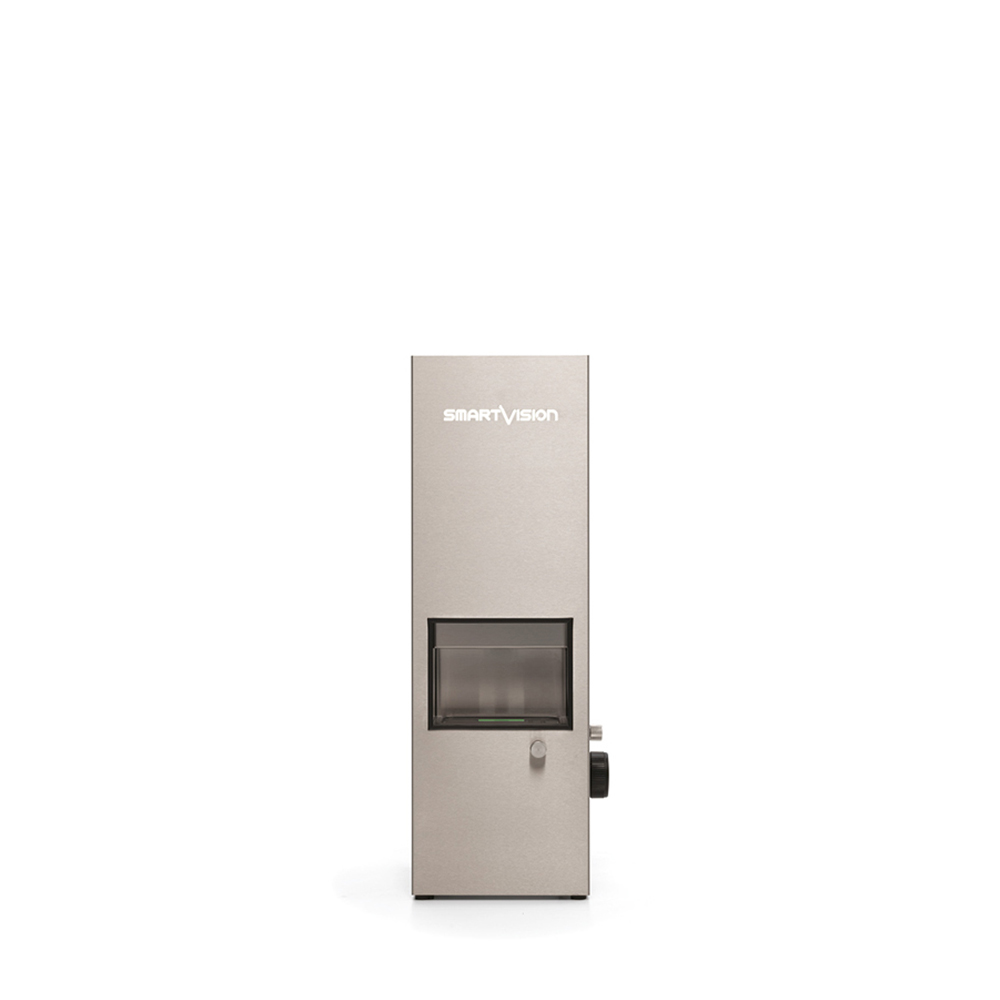

Digital Profile Projector for Micromechanical sector

“Smart_Projector_Ruby is the perfect solution to measure watch components and micromechanicals parts”

Precision & Repeatability

Smart_Projector_Ruby is an Automatic Digital Profile Projector that combines the precision, objectivity, repeatability and user-friendliness in one device, guaranteed by SmartVision’s Technology.

Its unique Extra Small Field of View (FoV) and the X/Y moving axes solution makes this instrument ideal for those application that require toughest precision tolerances, such as watch components, microelettronics and micromechanical items in general.

Accurate

This equipment ensures measurement stability of the image center when focusing and moving from one side to another. The benefits given by the precision of the Double Episcopic lights and the accuracy of the on board optics are put together in this equipment with no compromise in precision.

Industrial & Compact

Smart_Projector_Ruby is a fast, compact, rugged, stable, easy-to-use and easy-to-program device, expressly designed for the laboratories but also industrial environments and heavy duty cycles use.

Request for prices or a demo Download brochure

Extra Small FoV 2.2×1.7 (mm) with X-Y Moving Table and Focus Adjusting
Eliminates subjectivity and errors of operator-based gauging
Increases number of quotas and quality check rate, up to 16000 checking features in a few seconds
Performs a full automatic data report, available to processing by SPC software (Min, Max, Range, Average, Std Dev, 6 Sigma)
Compact, Rugged and Fanless industrial case
Plug-and-play, ready-to-use
Suitable for unskilled operators use
Clever investment with a fast Return on Investment
Reduces time and costs of controls
Ideal for those application that require toughest precision tolerances

Measuring Chamber (mm)	200×130 H.120
Magnification	No
Field of View (FoV) (mm)	2.2×1.7
FoV Diagonal (mm)	2.78
FoV Area (mm²)	3.74
Type of FoV	Rectangular
Repeatability accuracy	±0.075 μm
Measurement accuracy	±0.2 μm

Layout usage	Vertical
Diascopic Light	Collimated
Episcopic Light	4 independent 90° sectors
Light receiving lens	Telecentric lens
Communication Interface	Gigabit Ethernet + USB 2
Dimensions (mm)	282×330 H.875
Weight (kg)	29
Case	Rugged stainless steel

Smart_Projector	Ruby	7	29	55	Quattro Pro	Double	108	168	224
Image preview
Layout usage	Vertical	Vertical	Vertical	Vertical Horizontal	Vertical Horizontal	Vertical Horizontal	Vertical Horizontal	Vertical	Vertical
Magnification	No	No	No	No	4 steps	2 steps	No	No	No
Field of View (FoV) (mm)	2.2×1.7	7×4.5	29×19	55×37	ø 12 \| 24 \| 48 \| 90	60×45 \| 108×73	108×73	168×113	224×150
FoV Diagonal (mm)	2.78	8	30	60	–	75 \| 125	125	195	235
FoV Area (mm²)	3.74	31	530	2000	112 / 452 / 1800 / 6360	2700 \| 7800	7800	18500	32550
Diascopic Light	Collimated	Collimated	Collimated	Collimated	Collimated	Collimated	Collimated	Directional	Directional
Episcopic Light	Yes	No	No	Yes	Yes	Yes	Yes	Yes	No

Automatic feature recognition
Software programmable light
Quick Annotate and markup
CAD import / export (dxf file)
Automatic data report export (xlsx, csv, tsv, txt)
Print report (pdf)
Multi language interface

Barcode Scanner CCD

Smart_Data_Collection_SPC
READ MORE

Smart_Thread_Measurement
READ MORE

Smart_Profile_Matching
READ MORE

Smart_Wire_Measurement
READ MORE
